| Type | Part Number | Description | Interface | Other | Package |
|---|---|---|---|---|---|

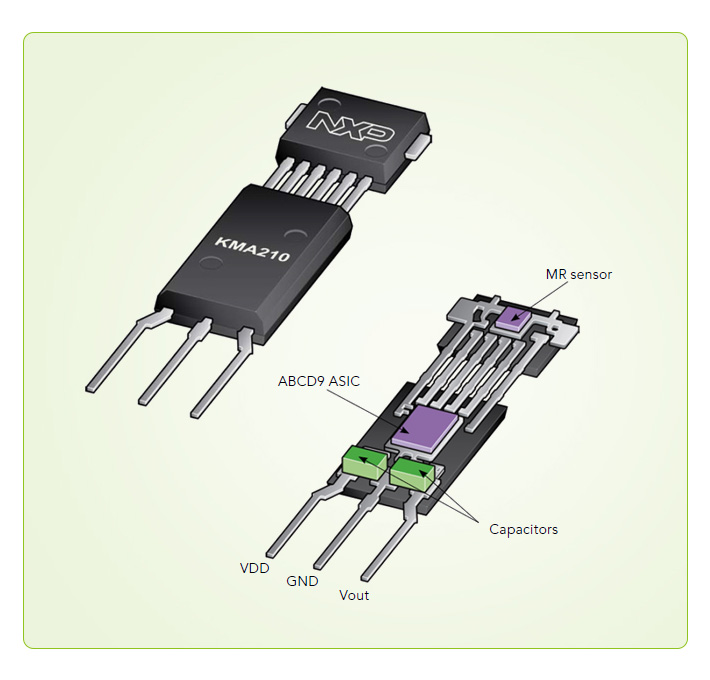

| Programmable Angle sensors | KMA210 | Programmableangle sensor | 1 analog outputlinear ~0/~5.0 V | Anglerange 180° max operating temperature 160°C | SIP3;SOT1288 |
| KMA215 | Programmableangle sensor with SAE J2716 SENT | 1 digital output SAEJ2716 SENT | Anglerange 180° max operating temperature 160°C | SIP3;SOT1288 | |
| KMA220 | Dualchannel programmable angle sensor | 2analog outputs; 1 per channel; ~0/~5.0 V | Anglerange 180° max operating temperature 160°C | SIL4;SOT1188-1 | |
| KMA221 | Programmableangle sensor | 1analog output linear ~0/~5.0 V | Anglerange 180° max operating temperature 160°C | SIL4;SOT1188-1 | |
| KMA310 | Automotiveprogrammable angle sensor | Singlechannel, analog/SENT output | Anglerange 180°, max operating temperature 180°C | SOT96-1 | |
| KMA320 | Automotiveprogrammable angle sensor | Dualchannel, analog/SENT output | Anglerange 180°, max operating temperature 180°C | SOT1188-2(SIL4) | |
| KMA321 | Automotiveprogrammable angle sensor | Singlechannel, analog/SENT output | Anglerange 180°, max operating temperature 180°C | SOT1188-2(SIL4) | |
| KMZ80 | Generalpurpose programmable angle sensor | Singlechannel, analog/SENT output | Anglerange 180°, max operating temperature 150°C | SOT1288-3(SIL3) | |
| Angle sensors with integratedAmplifier | KMZ60 | Anglesensor with integrated amplifier | amplified sine /cosine; 0.07…. 0.93 Vcc | Anglerange 180°, max operating temperature 150°C | S08;SOT96-1 |
| Magnetic Field Sensors | KMZ41 | Magneticfield sensor | sine / cosine output;0.081 peak voltage | Anglerange 180°, max operating temperature 150°C | S08;SOT96-1 |
| KMZ49 | Magneticfield sensor | sine / cosine output;0.067 peak voltage | Anglerange 180°, max operating temperature 150°C | S08;SOT96-1 | |
| X3G-0H047 | Magneticfield sensor | sine / cosine output;0.067 peak voltage | Anglerange 180°, max operating temperature 150°C | double-die;sawn wafer on foil | |
| X3G-0H048 | Magneticfield sensor | sine / cosine output;0.067 peak voltage | Anglerange 180°, max operating temperature 150°C | single-die;sawn wafer on foil | |
| X3T-0H047 | Magneticfield sensor | sine / cosine output;0.067 peak voltage | Anglerange 180°, max operating temperature 150°C | double-die;taped on reel | |
| X3T-0H048 | Magneticfield sensor | sine / cosine output;0.067 peak voltage | Anglerange 180°, max operating temperature 150°C | single-die;taped on reel |
基于AMR （各向异性磁阻）技术的角度和速度传感器以高精度的性能，客户可灵活选择稀土材料或低成本的铁氧体磁铁特点，适用于轮速测量、电子节气门、发动机管理、主动悬挂、底盘控制、电子助力转向等应用，有效控制系统成本。KMA系列磁阻(MR)角度传感器采用真正的角度测量方法，能够准确、可靠运行，不会导致磁场强度变化。磁阻传感器工作时几乎不受因使用寿命、温度和机械应力变化而造成的磁偏移和磁漂移的影响。通过卓越的线性度和温度漂移行为，它们能够提供高精度的角度测量。与采用其他传感方法的器件相比，我们的磁阻角度传感器具有明显的优势。磁阻传感器提供的输出信号基本上与磁铁容差、磁铁温度系数、磁铁传感器距离和定位容差无关。
与采用其他传感方法的器件相比，我们的磁阻角度传感器具有明显的优势。磁阻传感器提供的输出信号基本上与磁铁容差、磁铁温度系数、磁铁传感器距离和定位容差无关。
测量参数
测量范围0~180°
分辨率0.04°，误差+-1.35°
温漂+-0.65°，微线性+-0.1°
工作环境
工作电压：4.5 V-5.25 V
最大工作温度+160℃
独立于大于35 kA/m的磁场强度
电气保护
直流过电压保护达到+16V
外引脚的静电放电防护可达8KV
