| Product Family | Rated VoltsDC(V) | Clamping Voltage(V)Typ | Capacitance(pF)Typ | TriggerVoltage(V)Typ | Leakage Current | Size(mm)LxWxH | Packaging | Hold Current(A) | Max Fault Current Amps | Trip Current Amps | Agency Approvals | Interrupting Rating Amps |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage variable material | 5-30 | 24-35 | 0.05-0.15pF@1MHz | 125-350 | <0.1nA-0.01uA | 1.1x0.53x0.36 | 5-10k | |||||
| MLVA02 | 5.5-26 | 20-58 | 32-270pF@1MHz | - | <10uA | 0.6x0.3x0.3 | 4-15k | |||||
| MLVA04 | 1.0x0.5x0.5 | |||||||||||
| MLVA06 | 1.6x0.8x0.8 | |||||||||||
| MLVB04 | 9-18 | 35-250 | 0.5-5pF@1MHz | - | <10uA | 1.0x0.5x0.5 | 4-10K | |||||
| MLVB06 | 1.6x0.8x0.8 | |||||||||||
| TVSA04 | 5 | 17 | 4-6pF@1MHz | - | <10uA | 0.6x0.3x0.3 | 10-15K | |||||
| TVSA06 | 1.0x0.5x0.5 | |||||||||||
| PTR016V | 16-60 | Various | 1-3k | 0.1-15 | 40-100 | 0.2-25.5 | cURus,TUV | |||||
| PTR030V | ||||||||||||
| PTR060V | ||||||||||||
| PTS1206 | 6-60 | 3.2X1.6 | 1-5k | 0.05-3 | 10-100 | 0.15-5 | cURus,TUV | |||||
| PTS1812 | 4.6X3.2 | |||||||||||
| 0603FA | 32-50vdc | Fast-acting,High²t | 1.6x0.81 | 5-10k | 0.25-5 | UR,cURus,CSA | 35-50 | |||||
| CC06H | ||||||||||||
| 3216FF | 32vac/24-63vdc | Fast-acting,High²t,Time-Dealy | 3.2x1.6 | 2.5-3k | 0.25-30 | UR,cURus,CSA | 35-300 | |||||
| 3216TD | ||||||||||||
| CC12H | ||||||||||||
| 6125FF | 125VAC/60-72VDC | Fast-acting,Time-Dealy | 6.1X2.72 | 1-5K | 0.25-15 | UR,cURus,CSA | 50-300 | |||||
| 6125TD | ||||||||||||
| 1025FA | 250VAC-60-125VDC | Fast-acting,Time-Dealy,Telecom | 10.29x2.77 | 2.5k | 0.25-15 | UR,CSA | 40-60 | |||||
| 1025TD | ||||||||||||
| TCP | ||||||||||||
| SR-5 | 125-250vac | Fast-acting,Time-Dealy | 7.6x8.5 | 200,1000 | 0.04-10 | cURus,UL,VDE,Semko,CCC,CQC,EK-Mark,PSE | 35-63 | |||||
| SR-5F | ||||||||||||
| SR-5H | 250VAC | HBCTime-Delay | 8.6x8.4 | 200,1000 | 0.4-5 | cURus,PSE,EK-Mark,VDE,Semko,CCC | 100 | |||||
| SS-5 | 125-250vac | Fast-acting,Time-Dealy | 7.85x8.5x4.3 | 200,1000 | 0.4-10 | cURus,UL,VDE,Semko,CCC,CQC,EK-Mark,PSE | 35-63 | |||||
| SS-5F | ||||||||||||
| PC-Tron | 125-250vac/400-450vdc | Fast-Actin | 8.89X8.5X4.67 | 5,100,500 | 0.5-5 | UR,CSA | 50-10000AC/300-5900DC | |||||
| MCRW | 125VAC | Time-Delay,Fast-Acting | 3.18X7.1 | 1000,2500 | 0.1-15 | UR,CSA | 50-300 | |||||
| MVRS | ||||||||||||
| C310T | 250VAC | Time-Delay | 4x 11.5 | 1500 | 0.31-6.3 | cURus, VDE, | 35 | |||||
| AGC | 32-250Vac/125Vdc | Fast-acting,Time-Dealy,VeryFast-acting | 32.82X6.35 | 100,1000 | 0.05-40 | UL,UR,CSA,CE | 30-10,000AC/200-10000DC | |||||
| ABC | ||||||||||||
| MDL | ||||||||||||
| MDA | ||||||||||||
| GBB | ||||||||||||
| S500 | 125-250Vac | Fast-acting,Time-Dealy,MediumTime-Dealy, | 5X20 | 100,1000,1500 | 0.032-15 | UR,CSA,cURus,UL,VDE,Semko,CCC,CQC,EK-Mark,PSE,BSI,IMQ,PES/JET, | 35-10,000 | |||||
| S501 | ||||||||||||
| S505 | ||||||||||||
| S506 | ||||||||||||
| GMA | ||||||||||||
| GMC | ||||||||||||
| GMD | ||||||||||||
| C515 | 125-350Vac | Time-Delay,Fast-Acting,Lightingballast | 5X15 | 100,1000,1500 | 0.1-7 | UL,UR,CSA, | 25-10000 | |||||
| C517 | ||||||||||||
| C518 | ||||||||||||
| C519 | ||||||||||||
| C520 |
伊顿的电子部门拥有各种各样的Bussmann™系列电路保护产品包括一次性熔断器、配套熔断器附件、过电压和ESD抑制器、PTC可复位装置。伊顿致力于为工业、汽车、能源管理、计算机、医疗和消费品等众多应用设计和制造最具创新性的电路保护产品组合。
包含两个类型：

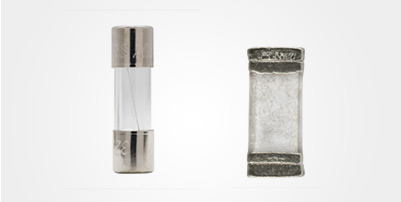

熔断类
由三个部分组成：一是熔体部分，熔断时起到切断电流的作用；二是电极部分，通常有两个，它是熔体与电路联接的重要部件，有良好的导电性，不应产生明显的安装接触电阻；三是支架部分，保险丝的熔体一般都纤细柔软的，支架的作用就是将熔体固定并使三个部分成为刚性的整体便于安装、使用。

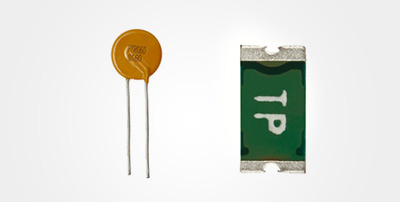

自恢复类
伊顿的Bussmann系列正温度系数（PTC）自恢复设备可在多种应用中提供过流保护。它们具有聚合物基结构，可在故障情况下提供成倍增加的电阻，以形成跳闸状态，从而有助于保护下游电路组件免受损坏的过电流。排除故障后，PTC可重置设备将返回到低电阻状态，并允许继续运行。
选型表下载
数据手册
- 点击选型表型号，下载数据手册
