| AMP Part Number | Package | GPIO | Core Type (M4, z4, S12…) | CPU Frequency (MHz) | Total Flash Memory (KB) | EEPROM/ DataFlash (KB) | SRAM (KB) | LIN / UART/SCI | (D)SPI | I2C | CAN/ CAN-FD | Timer Type | Number of independent timers | Timer Size | Channels | No. of ADC modules | Max ADC channels | ADC(resolution) | Analog Comparator | Analog Comparator Inputs | DAC | Additional Features | High Drive GPIOs (mA) | Voltage Range (V) | Ta Range (C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S9KEAZN8AMFK | QFN 24 | 22 | M0+ | 48 | 8 | - | 1 | 1 | 1 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 12 | 12 bit | 2 | 4 | 2ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN8AMTG | TSSOP 16 | 14 | M0+ | 48 | 8 | - | 1 | 1 | 1 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 6 | 12 bit | 2 | 4 | 2ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN16AMLC | LQFP 32 | 28 | M0+ | 40 | 16 | 0.256 | 2 | 2 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN16AMLH | LQFP 64 | 57 | M0+ | 40 | 16 | 0.256 | 2 | 3 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN32AMLC | LQFP 32 | 28 | M0+ | 40 | 32 | 0.256 | 4 | 2 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN32AMLH | LQFP 64 | 57 | M0+ | 40 | 32 | 0.256 | 4 | 3 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN32AVLC | LQFP 32 | 28 | M0+ | 40 | 32 | 0.256 | 4 | 2 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 105 |
| S9KEAZ64AMLH | LQFP 64 | 58 | M0+ | 48 | 64 | - | 8 | 3 | 2 | 2 | 1 / 0 | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2 ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 105 |
| S9KEAZ64AMLK | LQFP 80 | 71 | M0+ | 48 | 64 | - | 8 | 3 | 2 | 2 | 1 / 0 | FTM 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2 ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 105 | |
| S9KEAZN64AMLC | LQFP 32 | 28 | M0+ | 40 | 64 | 0.256 | 4 | 2 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZN64AMLH | LQFP 64 | 57 | M0+ | 40 | 64 | 0.256 | 4 | 3 | 2 | 1 | - | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2ch, 6 bit | 64 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 125 |
| S9KEAZ128AMLH | LQFP 64 | 58 | M0+ | 48 | 128 | - | 16 | 3 | 2 | 2 | 1 / 0 | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2 ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 105 |
| S9KEAZ128AMLK | LQFP 80 | 71 | M0+ | 48 | 128 | - | 16 | 3 | 2 | 2 | 1 / 0 | FTM | 3 | 16 bit | 6, 2 | 1 | 16 | 12 bit | 2 | 4 | 2 ch, 6 bit | 80 bit unique ID number | 20 | 2.7 to 5.5 | -40 to 105 |

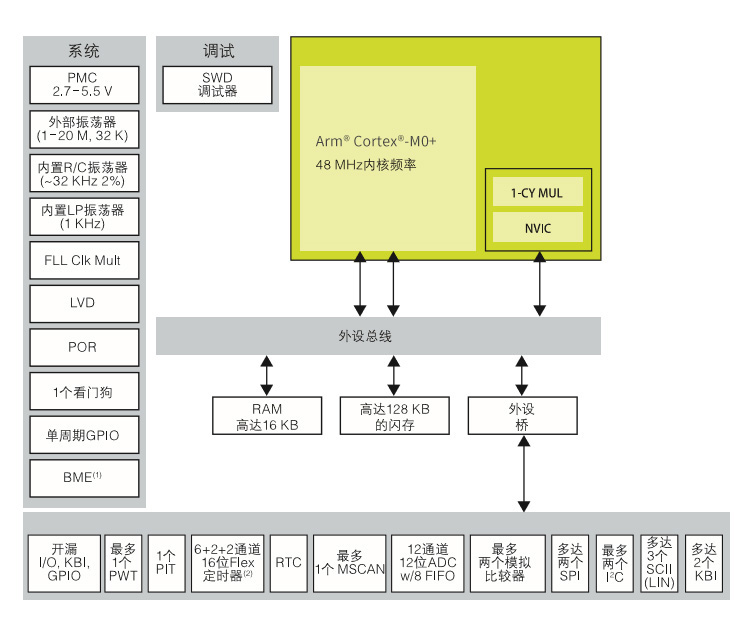

Kinetis EA系列32位MCU广泛适用于质量要求和长期供货保证要求都很高的汽车和工业应用。Kinetis EA系列是广泛的Arm®生态合作体系的入门级产品。
- 低功耗Arm® Cortex®-M0+内核和8-128KB的嵌入式闪存；
- 具有出色的EMC/ESD兼容性，能够适应高温环境，并且辐射排放较低；
- 提供可扩展、稳定可靠的高性能解决方案，适合成本敏感型汽车应用；
- 拥有丰富的参考设计、工具和应用说明，能够帮助您缩短设计开发时间，加快产品上市速度。
选型表下载
开发板型号
- S32K144EVB
支持芯片
- S9KEAZN8AMFK
- S9KEAZN16AMLH
- S9KEAZN32AMLH
- S9KEAZ64AMLH
- S9KEAZ64AMLK
- S9KEAZN64AMLH
- S9KEAZ128AMLH
- S9KEAZ128AMLK
功能特点
- 支持KEAZ128 (5 V)微控制器；
- 平台具备可扩展性，可支持多达176个引脚；
- 兼容Arduino®UNO规格，支持“Shield”扩展；
- 可轻松接入MCU I/O接头引脚，进行原型设计；
- 板载CAN、LIN、UART/SCI和SPI连接；
- 用于精确测量电压和模拟参数的电位计；
- 3色RGB LED；
- 小规格，6 x 4英寸；
- 集成开放标准的串行和调试适配器(OpenSDA)，支持多种行业标准的调试接口。
