GD32F4xx系列
首页 > 智能安全 >GD32F4xx系列

ARM微控制器 >GD32F4xx系列

采用Arm® Cortex®-M4内核，主频高达240MHz，具备快速的实时处理能力，可支持算法复杂度高的嵌入式应用。集成多种高性能的工业标准接口，为工控和物联网等设备互联需求提供高性价比解决方案。整合了强大的运算效能和出色的功耗效率，支持高级计算、通信网络、人机界面等多元化应用场景。

功能特点
选型表
开发套件
资料下载

产品型号

GD32F470

GD32F470主频达到240MHz,内置高级DSP硬件加速器和单精度浮点单元（FPU）支持2.6-3.6V工作电压，支持-40~85°C工作温度。配备高达3072KB flash，其中包含1024KB Code-flash 以及768KB SRAM缓存。EXMC:SDRAM/SRAM/NOR/NAND.
集成了8Xu(S)ART, 3xI2C,6Xspi,2XI2S, 支持高速通信接口USB FS+HS OTG, Ethernet,can2.0B, 支持图形图像接口TFT-LCD, Camera、IPA ,支持3x12bitADC,2x12bit DAC

GD32F427

GD32F427主频达到200MHz,内置高级DSP硬件加速器和单精度浮点单元（FPU）支持2.6-3.6V工作电压，支持-40~85°C工作温度。配备高达3072KB flash，其中包含512KB Code-flash 以及256KB SRAM缓存,集成了6Xu(S)ART, 3xI2C,3Xspi,2XI2S, 支持高速通信接口USB FS+HS OTG, Ethernet,can2.0B,支持3x12bitADC,2x12bit DAC

选型表

选型表下载

Part No	Core	Series	Package	Max Speed (MHz)	Flash (Bytes)	SRAM (Bytes)	I/O	GPTM (32bit)	GPTM (16bit)	Advanced TM (16bit)	HRTM	Basic TM (64bit)	Basic TM (32bit)	Basic TM (16bit)	LPTM (32bit)	LPTM (16bit)	SysTick (64bit)	SysTick (24bit)	WDG	RTC	USART+UART	LPUART	I2C	QSPI	SPI	I2S	CAN 2.0B	USB 2.0	Ethernet	SDIO	EtherCAT Slave Controller	MFCOM	LIN	LCD-TFT	Segment LCD	Camera	IPA	SAI	TMU	EXMC	CEC	14bit ADC Units (CHs)	12bit ADC Units (CHs)	12bit DAC Units	Comp	IEEE 802.11	Bluetooth	Date
GD32F470VET6	Cortex^®-M4	GD32F470	LQFP100	240	512K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VGT6	Cortex^®-M4	GD32F470	LQFP100	240	1024K	512K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VIT6	Cortex^®-M4	GD32F470	LQFP100	240	2048K	768K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VKT6	Cortex^®-M4	GD32F470	LQFP100	240	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VGH6	Cortex^®-M4	GD32F470	BGA100	240	1024K	512K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VIH6	Cortex^®-M4	GD32F470	BGA100	240	2048K	768K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470VKH6	Cortex^®-M4	GD32F470	BGA100	240	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F470ZET6	Cortex^®-M4	GD32F470	LQFP144	240	512K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470ZGT6	Cortex^®-M4	GD32F470	LQFP144	240	1024K	512K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470ZIT6	Cortex^®-M4	GD32F470	LQFP144	240	2048K	768K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470ZKT6	Cortex^®-M4	GD32F470	LQFP144	240	3072K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470IGH6	Cortex^®-M4	GD32F470	BGA176	240	1024K	512K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470IIH6	Cortex^®-M4	GD32F470	BGA176	240	2048K	768K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F470IKH6	Cortex^®-M4	GD32F470	BGA176	240	3072K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427RET6	Cortex^®-M4	GD32F427	LQFP64	200	512K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427RGT6	Cortex^®-M4	GD32F427	LQFP64	200	1024K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427RKT6	Cortex^®-M4	GD32F427	LQFP64	200	3072K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VET6	Cortex^®-M4	GD32F427	LQFP100	200	512K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VGT6	Cortex^®-M4	GD32F427	LQFP100	200	1024K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VKT6	Cortex^®-M4	GD32F427	LQFP100	200	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VEH6	Cortex^®-M4	GD32F427	BGA100	200	512K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VGH6	Cortex^®-M4	GD32F427	BGA100	200	1024K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427VKH6	Cortex^®-M4	GD32F427	BGA100	200	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F427ZET6	Cortex^®-M4	GD32F427	LQFP144	200	512K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427ZGT6	Cortex^®-M4	GD32F427	LQFP144	200	1024K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427ZKT6	Cortex^®-M4	GD32F427	LQFP144	200	3072K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427IEH6	Cortex^®-M4	GD32F427	BGA176	200	512K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427IGH6	Cortex^®-M4	GD32F427	BGA176	200	1024K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F427IKH6	Cortex^®-M4	GD32F427	BGA176	200	3072K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F425RET6	Cortex^®-M4	GD32F425	LQFP64	200	512K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425RGT6	Cortex^®-M4	GD32F425	LQFP64	200	1024K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425RKT6	Cortex^®-M4	GD32F425	LQFP64	200	3072K	256K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425VGT6	Cortex^®-M4	GD32F425	LQFP100	200	1024K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425VKT6	Cortex^®-M4	GD32F425	LQFP100	200	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425VGH6	Cortex^®-M4	GD32F425	BGA100	200	1024K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425VKH6	Cortex^®-M4	GD32F425	BGA100	200	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F425ZGT6	Cortex^®-M4	GD32F425	LQFP144	200	1024K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(24)	2	0	0	0	2024-11-19
GD32F425ZKT6	Cortex^®-M4	GD32F425	LQFP144	200	3072K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450VET6	Cortex^®-M4	GD32F450	LQFP100	200	512K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F450VGT6	Cortex^®-M4	GD32F450	LQFP100	200	1024K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F450VIT6	Cortex^®-M4	GD32F450	LQFP100	200	2048K	512K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F450VKT6	Cortex^®-M4	GD32F450	LQFP100	200	3072K	256K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	5	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F450ZET6	Cortex^®-M4	GD32F450	LQFP144	200	512K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450ZGT6	Cortex^®-M4	GD32F450	LQFP144	200	1024K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450ZIT6	Cortex^®-M4	GD32F450	LQFP144	200	2048K	512K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450ZKT6	Cortex^®-M4	GD32F450	LQFP144	200	3072K	256K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450IGH6	Cortex^®-M4	GD32F450	BGA176	200	1024K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450IIH6	Cortex^®-M4	GD32F450	BGA176	200	2048K	512K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F450IKH6	Cortex^®-M4	GD32F450	BGA176	200	3072K	256K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+4	0	3	0	6	2	2	(FS+HS) OTG	1	1	0	0	0	1	0	1	1	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407RET6	Cortex^®-M4	GD32F407	LQFP64	168	512K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407RGT6	Cortex^®-M4	GD32F407	LQFP64	168	1024K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407RKT6	Cortex^®-M4	GD32F407	LQFP64	168	3072K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VET6	Cortex^®-M4	GD32F407	LQFP100	168	512K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VGT6	Cortex^®-M4	GD32F407	LQFP100	168	1024K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VKT6	Cortex^®-M4	GD32F407	LQFP100	168	3072K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VEH6	Cortex^®-M4	GD32F407	BGA100	168	512K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VGH6	Cortex^®-M4	GD32F407	BGA100	168	1024K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407VKH6	Cortex^®-M4	GD32F407	BGA100	168	3072K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F407ZET6	Cortex^®-M4	GD32F407	LQFP144	168	512K	192K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407ZGT6	Cortex^®-M4	GD32F407	LQFP144	168	1024K	192K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407ZKT6	Cortex^®-M4	GD32F407	LQFP144	168	3072K	192K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407IEH6	Cortex^®-M4	GD32F407	BGA176	168	512K	192K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407IGH6	Cortex^®-M4	GD32F407	BGA176	168	1024K	192K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F407IKH6	Cortex^®-M4	GD32F407	BGA176	168	3072K	192K	up to 140	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	1	1	0	0	0	0	0	1	0	0	0	1	0	0	3(24)	2	0	0	0	2024-11-19
GD32F405RET6	Cortex^®-M4	GD32F405	LQFP64	168	512K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405RGT6	Cortex^®-M4	GD32F405	LQFP64	168	1024K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405RKT6	Cortex^®-M4	GD32F405	LQFP64	168	3072K	192K	up to 51	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405VGT6	Cortex^®-M4	GD32F405	LQFP100	168	1024K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405VKT6	Cortex^®-M4	GD32F405	LQFP100	168	3072K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405VGH6	Cortex^®-M4	GD32F405	BGA100	168	1024K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405VKH6	Cortex^®-M4	GD32F405	BGA100	168	3072K	192K	up to 82	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F405ZGT6	Cortex^®-M4	GD32F405	LQFP144	168	1024K	192K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(24)	2	0	0	0	2024-11-19
GD32F405ZKT6	Cortex^®-M4	GD32F405	LQFP144	168	3072K	192K	up to 114	2	8	2	0	0	0	2	0	0	0	0	2	1	4+2	0	3	0	3	2	2	(FS+HS) OTG	0	1	0	0	0	0	0	1	0	0	0	0	0	0	3(24)	2	0	0	0	2024-11-19
GD32F403RCT6	Cortex^®-M4	GD32F403	LQFP64	168	256K	64K	up to 51	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403RET6	Cortex^®-M4	GD32F403	LQFP64	168	512K	96K	up to 51	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403RGT6	Cortex^®-M4	GD32F403	LQFP64	168	1024K	128K	up to 51	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403RIT6	Cortex^®-M4	GD32F403	LQFP64	168	2048K	128K	up to 51	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403RKT6	Cortex^®-M4	GD32F403	LQFP64	168	3072K	128K	up to 51	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	0	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VCT6	Cortex^®-M4	GD32F403	LQFP100	168	256K	64K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VET6	Cortex^®-M4	GD32F403	LQFP100	168	512K	96K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VGT6	Cortex^®-M4	GD32F403	LQFP100	168	1024K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VIT6	Cortex^®-M4	GD32F403	LQFP100	168	2048K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VKT6	Cortex^®-M4	GD32F403	LQFP100	168	3072K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VCH6	Cortex^®-M4	GD32F403	BGA100	168	256K	64K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VEH6	Cortex^®-M4	GD32F403	BGA100	168	512K	96K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VGH6	Cortex^®-M4	GD32F403	BGA100	168	1024K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VIH6	Cortex^®-M4	GD32F403	BGA100	168	2048K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403VKH6	Cortex^®-M4	GD32F403	BGA100	168	3072K	128K	up to 80	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(16)	2	0	0	0	2024-11-19
GD32F403ZCT6	Cortex^®-M4	GD32F403	LQFP144	168	256K	64K	up to 112	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(21)	2	0	0	0	2024-11-19
GD32F403ZET6	Cortex^®-M4	GD32F403	LQFP144	168	512K	96K	up to 112	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(21)	2	0	0	0	2024-11-19
GD32F403ZGT6	Cortex^®-M4	GD32F403	LQFP144	168	1024K	128K	up to 112	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(21)	2	0	0	0	2024-11-19
GD32F403ZIT6	Cortex^®-M4	GD32F403	LQFP144	168	2048K	128K	up to 112	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(21)	2	0	0	0	2024-11-19
GD32F403ZKT6	Cortex^®-M4	GD32F403	LQFP144	168	3072K	128K	up to 112	0	8	2	0	0	0	2	0	0	0	0	2	1	3+2	0	2	0	3	2	2	FS OTG	0	1	0	0	0	0	0	0	0	0	0	1	0	0	3(21)	2	0	0	0	2024-11-19

开发套件

开发板型号

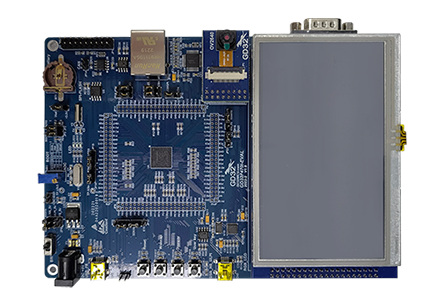

GD32F470I-EVAL

功能特点

GD32F470IKT6 MCU，用户LED 指示灯，按钮，1x USART，1x POT连接到ADC输入，2Kb EEPROM，16Mbit SPI和QSPI NOR Flash，耳机接口，Micro SD卡接口，USB FS连接器，USB HS连接器，1x CAN，以太网接口，256Mbit SDRAM，3.5英寸RGB-LCD（320x480），数码相机接口板上GD-Link编程器，J-Link / JTAG连接器

开发板型号

GD32427R-START

功能特点

GD32427R-START开发板使用GD32427RKT6作为主控制器。开发板使用GD-Link Mini USB接口提供5V电源。提供包括扩展引脚在内的Reset，Boot，K1-User Key，LED，USB等外设资源

资料下载

数据手册

用户手册

【用户手册】GD32VW55x用户手册
