| Part No | Core | Series | Package | Max Speed (MHz) | Flash (Bytes) | SRAM (Bytes) | I/O | GPTM (32bit) | GPTM (16bit) | Advanced TM (16bit) | HRTM | Basic TM (64bit) | Basic TM (32bit) | Basic TM (16bit) | LPTM (32bit) | LPTM (16bit) | SysTick (64bit) | SysTick (24bit) | WDG | RTC | USART+UART | LPUART | I2C | QSPI | SPI | I2S | CAN 2.0B | USB 2.0 | Ethernet | SDIO | EtherCAT Slave Controller | MFCOM | LIN | LCD-TFT | Segment LCD | Camera | IPA | SAI | TMU | EXMC | CEC | 14bit ADC Units (CHs) | 12bit ADC Units (CHs) | 12bit DAC Units | Comp | IEEE 802.11 | Bluetooth | Date |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GD32E235F4P6TR | Cortex?-M23 | GD32E235 | TSSOP20 | 72 | 16K | 4K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235F6P6TR | Cortex?-M23 | GD32E235 | TSSOP20 | 72 | 32K | 6K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235F8P6TR | Cortex?-M23 | GD32E235 | TSSOP20 | 72 | 64K | 8K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235F4V6TR | Cortex?-M23 | GD32E235 | LGA20 | 72 | 16K | 4K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235F6V6TR | Cortex?-M23 | GD32E235 | LGA20 | 72 | 32K | 6K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235F8V6TR | Cortex?-M23 | GD32E235 | LGA20 | 72 | 64K | 8K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235G4U6TR | Cortex?-M23 | GD32E235 | QFN28 | 72 | 16K | 4K | up to 23 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235G6U6TR | Cortex?-M23 | GD32E235 | QFN28 | 72 | 32K | 6K | up to 23 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235G8U6TR | Cortex?-M23 | GD32E235 | QFN28 | 72 | 64K | 8K | up to 23 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K4U6 | Cortex?-M23 | GD32E235 | QFN32 | 72 | 16K | 4K | up to 27 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K6U6 | Cortex?-M23 | GD32E235 | QFN32 | 72 | 32K | 6K | up to 27 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K8U6 | Cortex?-M23 | GD32E235 | QFN32 | 72 | 64K | 8K | up to 27 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235KBU6 | Cortex?-M23 | GD32E235 | QFN32 | 72 | 128K | 16K | up to 27 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K4T6 | Cortex?-M23 | GD32E235 | LQFP32 | 72 | 16K | 4K | up to 25 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K6T6 | Cortex?-M23 | GD32E235 | LQFP32 | 72 | 32K | 6K | up to 25 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235K8T6 | Cortex?-M23 | GD32E235 | LQFP32 | 72 | 64K | 8K | up to 25 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235KBT6 | Cortex?-M23 | GD32E235 | LQFP32 | 72 | 128K | 16K | up to 25 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235C4T6 | Cortex?-M23 | GD32E235 | LQFP48 | 72 | 16K | 4K | up to 39 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235C6T6 | Cortex?-M23 | GD32E235 | LQFP48 | 72 | 32K | 6K | up to 39 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235C8T6 | Cortex?-M23 | GD32E235 | LQFP48 | 72 | 64K | 8K | up to 39 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E235CBT6 | Cortex?-M23 | GD32E235 | LQFP48 | 72 | 128K | 16K | up to 39 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F4P6TR | Cortex?-M23 | GD32E230 | TSSOP20 | 72 | 16K | 4K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F6P6TR | Cortex?-M23 | GD32E230 | TSSOP20 | 72 | 32K | 6K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F8P6TR | Cortex?-M23 | GD32E230 | TSSOP20 | 72 | 64K | 8K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F4V6TR | Cortex?-M23 | GD32E230 | LGA20 | 72 | 16K | 4K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F6V6TR | Cortex?-M23 | GD32E230 | LGA20 | 72 | 32K | 6K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230F8V6TR | Cortex?-M23 | GD32E230 | LGA20 | 72 | 64K | 8K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230G4U6TR | Cortex?-M23 | GD32E230 | QFN28 | 72 | 16K | 4K | up to 23 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230G6U6TR | Cortex?-M23 | GD32E230 | QFN28 | 72 | 32K | 6K | up to 23 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230G8U6TR | Cortex?-M23 | GD32E230 | QFN28 | 72 | 64K | 8K | up to 23 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K4U6 | Cortex?-M23 | GD32E230 | QFN32 | 72 | 16K | 4K | up to 27 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K6U6 | Cortex?-M23 | GD32E230 | QFN32 | 72 | 32K | 6K | up to 27 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K8U6 | Cortex?-M23 | GD32E230 | QFN32 | 72 | 64K | 8K | up to 27 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K4T6 | Cortex?-M23 | GD32E230 | LQFP32 | 72 | 16K | 4K | up to 25 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K6T6 | Cortex?-M23 | GD32E230 | LQFP32 | 72 | 32K | 6K | up to 25 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230K8T6 | Cortex?-M23 | GD32E230 | LQFP32 | 72 | 64K | 8K | up to 25 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230C4T6 | Cortex?-M23 | GD32E230 | LQFP48 | 72 | 16K | 4K | up to 39 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230C6T6 | Cortex?-M23 | GD32E230 | LQFP48 | 72 | 32K | 6K | up to 39 | 0 | 4 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32E230C8T6 | Cortex?-M23 | GD32E230 | LQFP48 | 72 | 64K | 8K | up to 39 | 0 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 1 | 0 | 0 | 2024-11-19 |
| GD32F350G4U6TR | Cortex?-M4 | GD32F350 | QFN28 | 108 | 16K | 4K | up to 24 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350G6U6TR | Cortex?-M4 | GD32F350 | QFN28 | 108 | 32K | 6K | up to 24 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350G8U6TR | Cortex?-M4 | GD32F350 | QFN28 | 108 | 64K | 8K | up to 24 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350K4U6 | Cortex?-M4 | GD32F350 | QFN32 | 108 | 16K | 4K | up to 27 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350K6U6 | Cortex?-M4 | GD32F350 | QFN32 | 108 | 32K | 6K | up to 27 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350K8U6 | Cortex?-M4 | GD32F350 | QFN32 | 108 | 64K | 8K | up to 27 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350C4T6 | Cortex?-M4 | GD32F350 | LQFP48 | 108 | 16K | 4K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350C6T6 | Cortex?-M4 | GD32F350 | LQFP48 | 108 | 32K | 6K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350C8T6 | Cortex?-M4 | GD32F350 | LQFP48 | 108 | 64K | 8K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350CBT6 | Cortex?-M4 | GD32F350 | LQFP48 | 108 | 128K | 16K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(10) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350R4T6 | Cortex?-M4 | GD32F350 | LQFP64 | 108 | 16K | 4K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(16) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350R6T6 | Cortex?-M4 | GD32F350 | LQFP64 | 108 | 32K | 8K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(16) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350R8T6 | Cortex?-M4 | GD32F350 | LQFP64 | 108 | 64K | 16K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(16) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F350RBT6 | Cortex?-M4 | GD32F350 | LQFP64 | 108 | 128K | 16K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | FS OTG | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1(16) | 1 | 2 | 0 | 0 | 2024-11-19 |
| GD32F330F4P6TR | Cortex?-M4 | GD32F330 | TSSOP20 | 84 | 16K | 4K | up to 15 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330F6P6TR | Cortex?-M4 | GD32F330 | TSSOP20 | 84 | 32K | 4K | up to 15 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330F8P6TR | Cortex?-M4 | GD32F330 | TSSOP20 | 84 | 64K | 8K | up to 15 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330G4U6TR | Cortex?-M4 | GD32F330 | QFN28 | 84 | 16K | 4K | up to 23 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330G6U6TR | Cortex?-M4 | GD32F330 | QFN28 | 84 | 32K | 4K | up to 23 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330G8U6TR | Cortex?-M4 | GD32F330 | QFN28 | 84 | 64K | 8K | up to 23 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K4U6 | Cortex?-M4 | GD32F330 | QFN32 | 84 | 16K | 4K | up to 27 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K6U6 | Cortex?-M4 | GD32F330 | QFN32 | 84 | 32K | 4K | up to 27 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K8U6 | Cortex?-M4 | GD32F330 | QFN32 | 84 | 64K | 8K | up to 27 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K4T6 | Cortex?-M4 | GD32F330 | LQFP32 | 84 | 16K | 4K | up to 27 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K6T6 | Cortex?-M4 | GD32F330 | LQFP32 | 84 | 32K | 4K | up to 27 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330K8T6 | Cortex?-M4 | GD32F330 | LQFP32 | 84 | 64K | 8K | up to 27 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330C4T6 | Cortex?-M4 | GD32F330 | LQFP48 | 84 | 16K | 4K | up to 39 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330C6T6 | Cortex?-M4 | GD32F330 | LQFP48 | 84 | 32K | 4K | up to 39 | 1 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330C8T6 | Cortex?-M4 | GD32F330 | LQFP48 | 84 | 64K | 8K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330CBT6 | Cortex?-M4 | GD32F330 | LQFP48 | 84 | 128K | 16K | up to 39 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330R8T6 | Cortex?-M4 | GD32F330 | LQFP64 | 84 | 64K | 16K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(16) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F330RBT6 | Cortex?-M4 | GD32F330 | LQFP64 | 84 | 128K | 16K | up to 55 | 1 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(16) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310F4P6TR | Cortex?-M4 | GD32F310 | TSSOP20 | 72 | 16K | 4K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 1+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310F6P6TR | Cortex?-M4 | GD32F310 | TSSOP20 | 72 | 32K | 6K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310F8P6TR | Cortex?-M4 | GD32F310 | TSSOP20 | 72 | 64K | 8K | up to 15 | 0 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310G8U6TR | Cortex?-M4 | GD32F310 | QFN28 | 72 | 64K | 8K | up to 23 | 0 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310K8U6 | Cortex?-M4 | GD32F310 | QFN32 | 72 | 64K | 8K | up to 27 | 0 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310K6T6 | Cortex?-M4 | GD32F310 | LQFP32 | 72 | 32K | 6K | up to 25 | 0 | 4 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310K8T6 | Cortex?-M4 | GD32F310 | LQFP32 | 72 | 64K | 8K | up to 25 | 0 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
| GD32F310C8T6 | Cortex?-M4 | GD32F310 | LQFP48 | 72 | 64K | 8K | up to 39 | 0 | 5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 1 | 2+0 | 0 | 2 | 0 | 2 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(10) | 0 | 0 | 0 | 0 | 2024-11-19 |
GD32入门级MCU采用领先的工艺和核心架构，为开发人员提供增强的处理能力、更大的存储容量和更丰富的片上资源，同时降低成本。入门级产品阵容包括3大产品线和7个产品系列，适用于工业控制、电机驱动、人机界面、电力监控和报警系统、消费类和手持设备、游戏和GPS、电动自行车等各种成本敏感的应用场景。为客户提供了替换或增强传统 8 位和 16 位MCU的产品选择，从而能够直接升级到高速主流 32 位 Cortex® 架构。
产品型号
GD32E235
- GD32E235产品主频高达72MHz，支持高达128KB Flash和16KB SARM。还集成了 USART、I2C、SPI、I2S、ADC、比较器以及其他数字和模拟外设资源。
- GD32E235 产品系列提供 TSSOP20、LGA20、QFN28、QFN32、LQFP32、QFN48 和 LQFP48 封装选项。
GD32E230
- GD32E230产品主频高达72MHz，支持高达64KB Flash和8KB SARM。还集成了 USART、I2C、SPI、I2S、ADC、比较器以及其他数字和模拟外设资源。
- GD32E230 产品系列提供 TSSOP20、LGA20、QFN28、QFN32、LQFP32 和 LQFP48 封装选项。
GD32F350
- GD32F350产品主频高达108MHz，支持高达128KB Flash和16KB SARM。还集成了 USART, I2C, SPI, USB FS OTG, I2S以及其他数字和模拟外设资源。
- GD32F350产品系列提供QFN28, QFN32, LQFP48和LQFP64封装选项。
GD32F330
- GD32F330产品主频高达84MHz，支持高达128KB Flash和16KB SARM。还集成了 USART, I2C, SPI以及其他数字和模拟外设资源。
- GD32F330产品系列提供TSSOP20, QFN28, QFN32, LQFP32, LQFP48和LQFP64封装选项。
GD32F310
- GD32F310产品主频高达72MHz，支持高达64KB Flash和8KB SARM。还集成了 USART, I2C, SPI, I2S以及其他数字和模拟外设资源。
- GD32F310产品系列提供TSSOP20, QFN28, QFN32, LQFP32和LQFP48 封装选项。
选型表下载
开发板型号

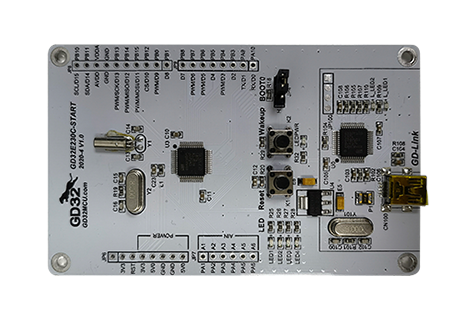

- GD32E230C-START
功能特点
- GD32E230C-START 评估板使用 GD32E230C8T6 作为主控制器。评估板使用 Mini USB接口提供 5V 电源。提供包括扩展引脚在内的 Reset按键和Wakeup按键, Boot, LED指示灯, 板载GD-Link, Ardunio接口 等外设资源。
开发板型号

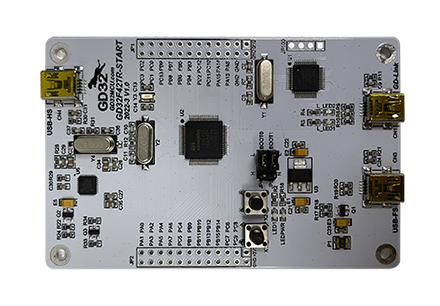

- GD32427R-START
功能特点
- 2． 开发板型号：GD32E230G-START GD32E230G-START 评估板使用 GD32E230G8U6 作为主控制器。评估板使用 Mini USB接口提供 5V 电源。提供包括扩展引脚在内的 Reset, Boot, User key, LED指示灯, 板载GD-Link 等外设资源
开发板型号

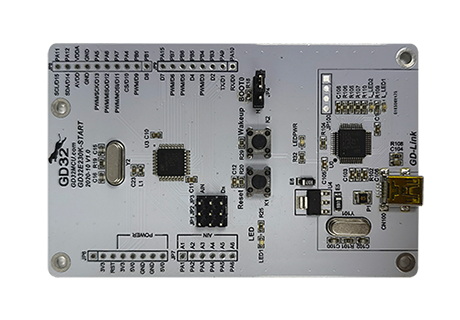

- GD32E230K START
功能特点
- GD32E230K START使用GD32E230K8T6作为主控制器。采用Mini USB 接口提供5V电源。提供包括Reset按键，Wakeup按键，boot，板载GD-Link
开发板型号

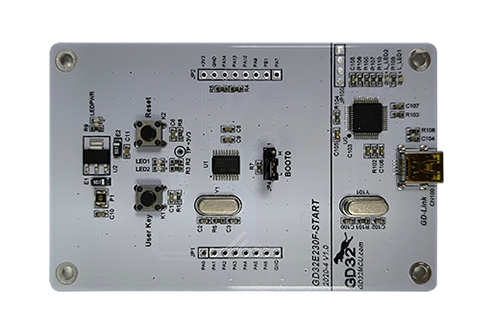

- GD32E230F-START
功能特点
- GD32E230F-START 评估板使用 GD32E230F8P6 作为主控制器。评估板使用 Mini USB接口提供 5V 电源。提供包括扩展引脚在内的 Reset, Boot, 用户按键, LED指示灯, 板载GD-Link 等外设资源
开发板型号
- GD32E230V-START
功能特点
- GD32E230V-START 评估板使用 GD32E230FxV6 作为主控制器。评估板使用 Mini USB接口提供 5V 电源。提供包括扩展引脚在内的 Reset按键, User按键Boot,LED指示灯, 板载GD-Link等外设资源。
开发板型号

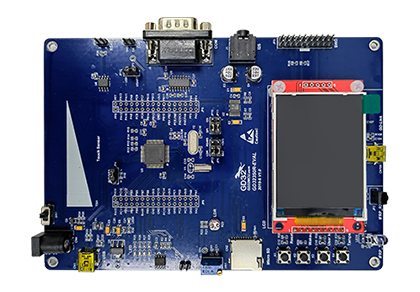

- GD32350R-EVAL
功能特点
- GD32F350RBT6 MCU，用户LED指示灯，按钮，1个USART，RS485，POT，耳机插座，2Kb EEPROM，Micro SD卡接口，2.2英寸TFT显示屏（320x240），USB，比较器，HDMI-CEC，触摸界面，IFRP，板载GD-Link编程器
