S32K通用处理器
32位Arm^® Cortex^®-M4F和Cortex^®-M0+内核MCU
首页 > 汽车MCU >S32K通用处理器

汽车MCU > S32K通用处理器

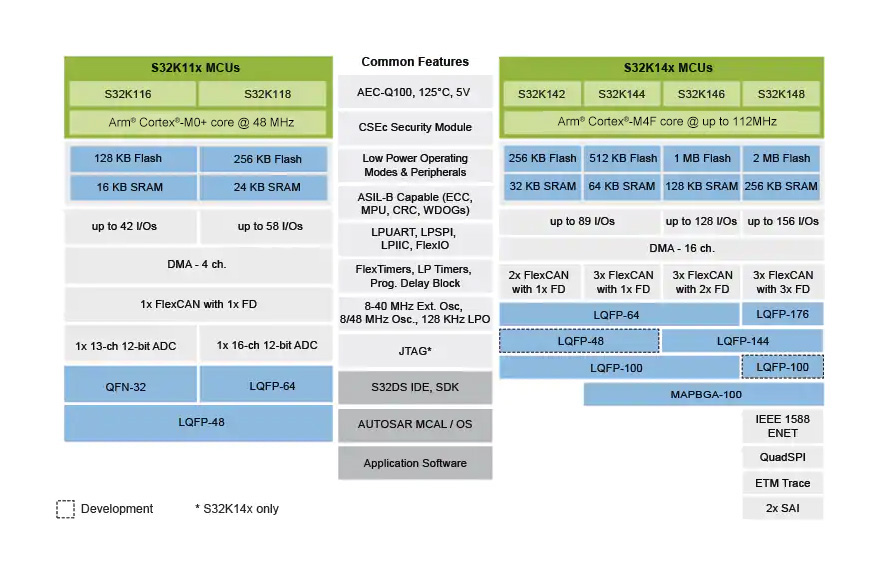

S32K是一款符合AEC-Q100规范、基于32位Arm^® Cortex^®-M4F和Cortex^®-M0+内核的MCU，适用于通用汽车和高可靠性工业应用。

功能特点
选型表
开发套件
资料下载

可扩展性 - 硬件和软件兼容的系列，提供多种性能、存储器和功能选项；
集成 - ISO CAN FD、CSEc硬件安全、ASIL-B ISO26262功能安全和超低功耗性能；
软件 - 提供免费的汽车级软件开发套件(SDK)和S32 Design Studio IDE、AUTOSAR和MCAL支持以及第三方生态合作体系。

选型表

选型表下载

AMP Part Number	Package	GPIO	Core Type (M4, z4, S12…)	CPU Frequency (MHz)	Total Flash Memory (KB)	EEPROM/ DataFlash (KB)	SRAM (KB)	DMA (channels)	Functional Safety	Security	LIN / UART/SCI	(D)SPI	I²C	CAN/ CAN-FD	FlexIO	Ethernet Type	QuadSPI	Timer Type	Number of independent timers	Timer Size	Channels	No. of ADC modules	Max ADC channels	ADC (resolution)	Analog Comparator	Analog Comparator Inputs	DAC	Additional Features	High Drive GPIOs (mA)	Debug	Voltage Range (V)	Ta Range (C)
FS32K142HAT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K142HAT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K142HAT0VLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K142HFT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	-	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K142HFT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K142MAT0MLLT	LQFP 100	89	M4F	11	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K142MNT0VLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	-	2	2	1	2/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K142MNT0VLLT	LQFP 100	89	M4F	64	256 w ECC	4	32	16	ASIL-B	-	2	2	1	2/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K142UAT0VLHT	LQFP 64	58	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K142UAT0VLLT	LQFP 100	89	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	2	2	1	2/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144HAT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144HAT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144HAT0MMHT	BGA 100	92	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144HAT0VLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144HAT0VLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144HFT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144HFT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144HFT0VLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144HFT0VLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144HNT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144MAT0VLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144MFT0VLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144MNT0MLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144MNT0MLLT	LQFP 100	89	M4F	64	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144MNT0VLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144MNT0VLLT	LQFP 100	89	M4F	64	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144MST0MLHT	LQFP 64	58	M4F	64	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K144UAT0VLHT	LQFP 64	58	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144UAT0VLLT	LQFP 100	89	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144UAT0VMHT	BGA 100	92	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144UFT0VLHT	LQFP 64	58	M4F	112	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144UFT0VLLT	LQFP 100	89	M4F	112	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/1	8 pin	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K144UST0VLHT	LQFP 64	58	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/0	-	-	-	FlexTimer	4	16 bit	32	2	16	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146HAT0MLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K146HAT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K146HAT0MLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K146HAT0VLHT	LQFP 64	58	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146HFT0MLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 125
FS32K146HFT0VLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146HNT0VLLT	LQFP 100	89	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	1	3/0	-	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146UAT0VLHT	LQFP 64	58	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146UAT0VLLT	LQFP 100	89	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K146UAT0VLQT	LQFP 144	128	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	1	3/2	8 pin	-	-	FlexTimer	6	16 bit	48	2	24	12 bit	1	2	1 ch, 8 bit		20	JTAG, SWD	2.7 to 5.5	-40 to 105
FS32K148HAT0MLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 125
FS32K148HAT0MLUT	LQFP 176	156	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 125
FS32K148HAT0VLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148HET0MLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	2	3/0	-	1 10/100	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 125
FS32K148HFT0MLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 125
FS32K148HFT0MLUT	LQFP 176	156	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 125
FS32K148HFT0VLQT	LQFP 144	128	M4F	80	256 w ECC	4	32	16	ASIL-B	-	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148UAT0VMHT	BGA 100	92	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148UJT0VLQT	LQFP 144	128	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	1 10/100	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148UJT0VLUT	LQFP 176	156	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	1 10/100	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148UJT0VMHT	BGA 100	92	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	1 10/100	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105
FS32K148UAT0VLQT	LQFP 144	128	M4F	112	256 w ECC	4	32	16	ASIL-B	CSEc	3	3	2	3/3	8 pin	-	1	FlexTimer	8	16 bit	64	2	32	12 bit	1	2	1 ch, 8 bit	SAI	20	JTAG, SWD,ETM	2.7 to 5.5	-40 to 105

开发套件

开发板型号

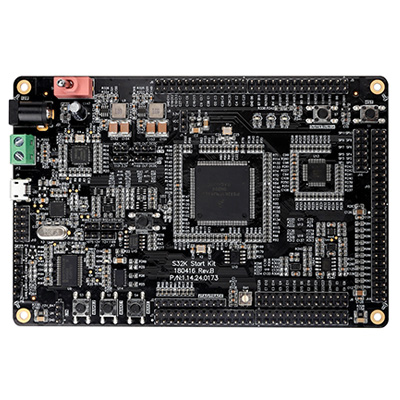

S32K Start Kit

支持芯片

S32K系列LQFP144封装

功能特点

符合 ISO26262功能安全标准
支持汽车以太网应用
支持 CAN•FD 应用
灵活的内部储存应用方案
强大的加密功能
支持低功耗
丰富的内部资源，灵活可配置

开发板型号

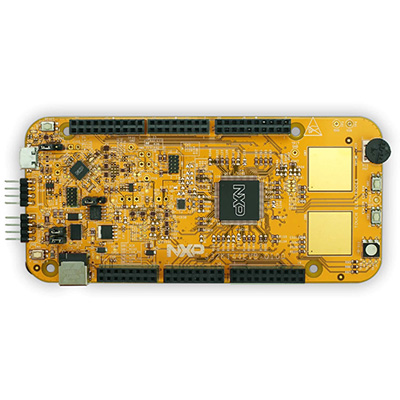

S32K144EVB

支持芯片

S32K142系列LQFP100封装
S32K144系列LQFP100封装
S32K146系列LQFP100封装

功能特点

小规格
兼容Arduino^®UNO规格，支持“Shield”扩展板
板载CAN，LIN和UART / SCI连接
集成SBC（UJA1169）和LIN phy（TJA1027）
可轻松接入MCU I/O接头引脚，进行原型设计
电位计，RGB LED，2个按钮和2个触摸板
灵活的供电选项（microUSB或外部12V电源）
集成开放标准的串行和调试适配器（OpenSDA），支持多种行业标准调试接口

资料下载

数据手册

【数据手册】S32K1xx Data Sheet

参考手册

【参考手册】S32K1xx Series Reference Manual

勘误手册

更多更新资料，请访问原厂网站 >
