| AMP Part Number | Package | GPIO | Core Type (M4, z4, S12…) | CPU Frequency (MHz) | Total Flash Memory (KB) | EEPROM/ DataFlash (KB) | SRAM (KB) | LIN/ UART/SCI | (D)SPI | CAN/ CAN-FD | Timer Type | Number of independent timers | Timer Size | Channels | No. of ADC modules | Max ADC channels | ADC (resolution) | Additional Features | High-Voltage Features (LS-HS Drivers, GDU) | High Drive GPIOs (mA) | PHY (LIN, CAN) | High Voltage Input | Debug | Voltage Range (V) | Ta Range (C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S912ZVMC12F3MKH | LQFP 64-EP | 24 | S12Z | 50 | 128 w ECC | 0.512 | 8 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVMC12F3WKH | LQFP 64-EP | 24 | S12Z | 50 | 128 w ECC | 0.512 | 8 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVML12F3MKH | LQFP 64-EP | 24 | S12Z | 50 | 128 w ECC | 0.512 | 8 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVML12F3WKH | LQFP 64-EP | 24 | S12Z | 50 | 128 w ECC | 0.512 | 8 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVM16F1MKF | LQFP 48-EP | 10 | S12Z | 50 | 16 w ECC | 0.128 | 2 w ECC | 2 | - | - | TIM | 1 | 16 bit | 4 | 2 | 4 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVM16F1MKH | LQFP 64-EP | 24 | S12Z | 50 | 16 w ECC | 0.128 | 2 w ECC | 2 | 1 | - | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVM16F1WKF | LQFP 48-EP | 10 | S12Z | 50 | 16 w ECC | 0.128 | 2 w ECC | 2 | - | - | TIM | 1 | 16 bit | 4 | 2 | 4 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVMC25F1MKK | LQFP 80-EP | 28 | S12Z | 50 | 256 w ECC | 1 | 32 w ECC | 2 | 1 | 1 / 0 | TIM | 2 | 16 bit | 4,2 | 2 | 16 | 12 bit | COP, PMF, PTU, PWM,API | 6 GDU | 20 | CAN-PHY | 1 | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVMC25F1WKK | LQFP 80-EP | 28 | S12Z | 50 | 256 w ECC | 1 | 32 w ECC | 2 | 1 | 1 / 0 | TIM | 2 | 16 bit | 4,2 | 2 | 16 | 12 bit | COP, PMF, PTU, PWM,API | 6 GDU | 20 | CAN-PHY | 1 | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVML32F3MKH | LQFP 64-EP | 24 | S12Z | 50 | 32 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVML32F3WKH | LQFP 64-EP | 24 | S12Z | 50 | 32 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVMBA4F0VLF | LQFP 48 | 15 | S12Z | 32 | 48 w ECC | 0.512 | 4 w ECC | 2 | 1 | - | TIM | 2 | 16 bit | 4 | 1 | 5 | 10 bit, 8 bit | COP, PMF, PTU, API | 2 HS, 4 GDU | 25 | LIN-PHY | 3 | DBG, BDC | 6 to 18 | -40 to 105 |
| S912ZVMBA4F0VLH | LQFP 64 | 24 | S12Z | 32 | 48 w ECC | 0.512 | 4 w ECC | 2 | 1 | - | TIM | 2 | 16 bit | 4 | 1 | 9 | 10 bit, 8 bit | COP, PMF, PTU, API | 2 HS, 4 GDU | 25 | LIN-PHY | 3 | DBG, BDC | 6 to 18 | -40 to 105 |
| S912ZVMC64F3MKH | LQFP 64-EP | 24 | S12Z | 50 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVMC64F3WKH | LQFP 64-EP | 24 | S12Z | 50 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | - | - | DBG, BDC | 5.5 to 18 | -40 to 150 |
| S912ZVMBA6F0MLF | LQFP 48 | 15 | S12Z | 32 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | - | TIM | 2 | 16 bit | 4 | 1 | 5 | 10 bit, 8 bit | COP, PMF, PTU, API | 2 HS, 4 GDU | 25 | LIN-PHY | 3 | DBG, BDC | 6 to 18 | -40 to 125 |
| S912ZVMBA6F0MLH | LQFP 64 | 24 | S12Z | 32 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | - | TIM | 2 | 16 bit | 4 | 1 | 9 | 10 bit, 8 bit | COP, PMF, PTU, API | 2 HS, 4 GDU | 25 | LIN-PHY | 3 | DBG, BDC | 6 to 18 | -40 to 125 |
| S912ZVMBA6F0WLF | LQFP 48 | 15 | S12Z | 32 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | - | TIM | 2 | 16 bit | 4 | 1 | 5 | 10 bit, 8 bit | COP, PMF, PTU, API | 2 HS, 4 GDU | 25 | LIN-PHY | 3 | DBG, BDC | 6 to 18 | -40 to 150 |
| S912ZVML64F3MKH | LQFP 64-EP | 24 | S12Z | 50 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 125 |
| S912ZVML64F3WKH | LQFP 64-EP | 24 | S12Z | 50 | 64 w ECC | 0.512 | 4 w ECC | 2 | 1 | 1 / 0 | TIM | 1 | 16 bit | 4 | 2 | 9 | 12 bit | COP, PMF, PTU, API | 6 GDU | 20 | LIN-PHY | - | DBG, BDC | 5.5 to 18 | -40 to 150 |

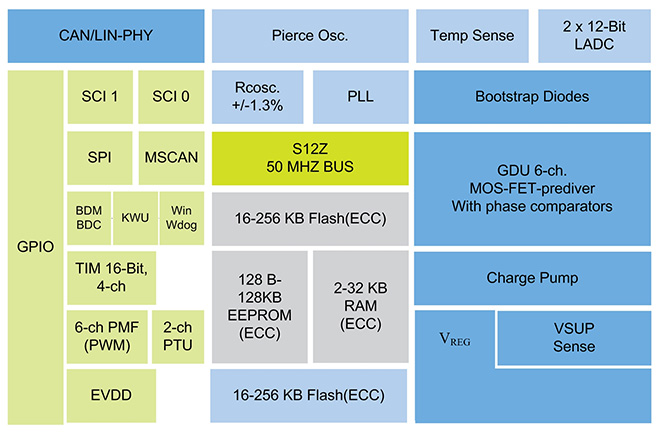

S12ZVM系列为工业和汽车应用（BLDC，PMSM或SR电机）提供了最小，最高效和可扩展的三相电机控制解决方案。它将先进的S12Z 16位MCU与12V至5V电压调节器，LIN物理层或CAN物理层和栅极驱动器单元（GDU）集成在一起，以控制用于汽车和工业应用的六个功率MOSFET，例如 鼓风机，风扇，燃料泵，水泵或者油泵。
产品型号
NVT2001/02 NVT2001
- 提供双向电压转换，无方向引脚
- 低于1.5ns的最大传输延迟
- 允许以下电压之间的电压电平转换：
- 工作电压范围为1.0V至3.6V（Vref(A))和1.8V至5.5V (Vref(B)）
- 输入和输出端口之间的低3.5 Ω导通状态连接提供更少的信号失真
- I/O端口可耐受5V电压，支持混合信号模式操作
- EN=低电平时，An和Bn引脚为高阻抗
- ESD保护：根据JESD22-A114超过4kV HBM，根据JESD22-C101超过1000V CDM
NTB0104
- 带自动方向感应的4位双电源转换收发器
- 电源电压范围较大：VCC(A)：1.2 V至3.6 V和VCC(B)：1.65 V至5.5 V
- IOFF电路可在局部掉电模式下工作
- 输入可接受高达5.5 V的电压
- ESD保护
- 闭锁性能超过100 mA，符合JESD 78B II类标准
- 多种封装选择
- 指定温度范围为-40 °C至+85 °C和-40 °C至+125 °C
NTS0104
- 电源电压范围较大：VCC(A)：1.65 V至3.6 V和VCC(B)：2.3 V至5.5 V
- 最大数据速率：推挽速率：50 Mbit/s
- IOFF电路提供部分掉电模式操作
- 输入可接受高达5.5 V的电压
- ESD保护：
- IEC61000-4-2接触放电超过8000 V（适合端口B）
- 闭锁性能超过100 mA，符合JESD 78B II类标准
- 多种封装选择
- 指定温度范围为-40 °C至+85 °C和-40 °C至+125 °C
GTL2014PW
- 用作4位GTL-/GTL/GTL+采样接收器或用作LVTTL至GTL-/GTL/GTL+驱动器
- 3.0 V至3.6 V操作，5 V容压LVTTL输入
- GTL输入和输出具有3.6 V容压
- Vref可调节范围为0.5 V至VCC/2
- 允许部分节电
- ESD保护：按JESD22-A114超过2000 V HBM，按JESD22-CC101超过1000 V CDM
- 闭锁保护按JESD78超过500 mA
- 封装方式：TSSOP14
选型表下载
开发板型号
- S12ZVMMotorEVB
支持芯片
- S912ZVML64F3WKH
特性
- 高度集成的电机芯片，缩短了硬件设计周期
- 支持传统的六步换向控制方法
- 支持单双电阻采样的磁场定向控制（FOC）方法
- 板子最大工作功率可达500W
- 具有母线电压，电流以及MOS管等保护电路
