| 产品型号 | 主频(MHz) | Flash | SRAM | I/O | GPTM(16bit) | Advanced TM (16bit) | Basic TM (16bit) | SysTick (24bit) | WDG | RTC | USART | I2C | SPI2.0 FS | I2S | Comp | OP-AMP | 12bit ADC Units (CHs) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GD32E230F4P6 | 72 | 16K | 4K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(9) | TSSOP20 | |
| GD32E230F6P6 | 72 | 32K | 6K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(9) | TSSOP20 | |
| GD32E230F8P6 | 72 | 64K | 8K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(9) | TSSOP20 | |
| GD32E230F4V6 | 72 | 16K | 4K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(9) | LGA20 | |
| GD32E230F6V6 | 72 | 32K | 6K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(9) | LGA20 | |
| GD32E230F8V6 | 72 | 64K | 8K | up to 15 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(9) | LGA20 | |
| GD32E230G4U6 | 72 | 16K | 4K | up to 23 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(10) | QFN28 | |
| GD32E230G6U6 | 72 | 32K | 6K | up to 23 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(10) | QFN28 | |
| GD32E230G8U6 | 72 | 64K | 8K | up to 23 | 5 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(10) | QFN28 | |
| GD32E230K4U6 | 72 | 16K | 4K | up to 27 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(10) | QFN32 | |
| GD32E230K6U6 | 72 | 32K | 6K | up to 27 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(10) | QFN32 | |
| GD32E230K8U6 | 72 | 64K | 8K | up to 27 | 5 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(10) | QFN32 | |
| GD32E230K4T6 | 72 | 16K | 4K | up to 25 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(10) | LQFP32 | |
| GD32E230K6T6 | 72 | 32K | 6K | up to 25 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(10) | LQFP32 | |
| GD32E230K8T6 | 72 | 64K | 8K | up to 25 | 5 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(10) | LQFP32 | |
| GD32E230C4T6 | 72 | 16K | 4K | up to 39 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1(10) | LQFP48 | |
| GD32E230C6T6 | 72 | 32K | 6K | up to 39 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1(10) | LQFP48 | |
| GD32E230C8T6 | 72 | 64K | 8K | up to 39 | 5 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1(10) | LQFP48 | |
| GD32E231C4T6 | 72 | 16K | 4K | up to 39 | 4 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1(10) | LQFP48 |
| GD32E231C6T6 | 72 | 32K | 6K | up to 39 | 4 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 1(10) | LQFP48 |
| GD32E231C8T6 | 72 | 64K | 8K | up to 39 | 5 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 2 | 1(10) | LQFP48 |
基于Cortex®-M23内核的首个产品系列，GD32E230系列MCU采用了业界领先的55nm低功耗工艺制程，着眼于超低开发预算需求，为取代及提升传统的8位和16位产品解决方案，并跨越Cortex®-M0/M0+门槛，直接进入32位Cortex®-M23内核的开发新世代带来一步到位的入门使用体验。
- GD32E230系列超值型新品主频高达72MHz
- 配备了16KB到64KB的嵌入式闪存及4KB到8KB的SRAM，配合内置的硬件乘法器、除法器和加速单元，在最高主频下的工作性能可达55DMIPS，采用1.8V-3.6V宽电压供电，I/O口可承受5V电平
- 全新设计的电压域支持高级电源管理并针对节能便携等低功耗应用场合提供了三种省电模式
- GD32E231系列MCU采用LQFP48
- 多达4个16位通用定时器、1个支持三相脉宽调制PWM输出和霍尔采集接口的16位高级矢量控制定时器、1个16位基本定时器和1个多通道DMA控制器
- 通用接口则包括2个USART、2个SPI、2个I2C、1个I2S
选型表下载
开发板型号
- GD32E230C-START
支持芯片
- GD32E230C4T6
- GD32E230C6T6
- GD32E230C8T6
开发板型号

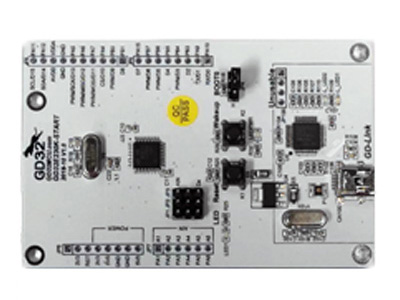

- GD32E230K-START
支持芯片
- GD32E230K4U6
- GD32E230K6U6
- GD32E230K8U6
- GD32E230K4T6
- GD32E230K6T6
- GD32E230K8T6
开发板型号
- GD32E230G-START
支持芯片
- GD32E230G4U6
- GD32E230G6U6
- GD32E230G8U6
开发板型号

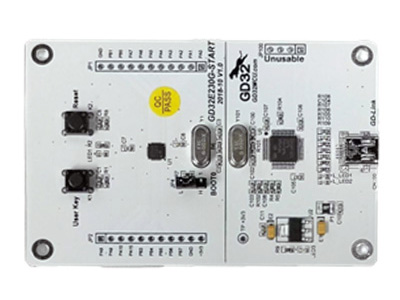

- GD32E230F-STAR
支持芯片
- GD32E230F4P6
- GD32E230F6P6
- GD32E230F8P6
- GD32E230F4V6
- GD32E230F6V6
- GD32E230F8V6
